Digi AW08-W300
See any errors on this page?
Please let us know.

Alternative Views:

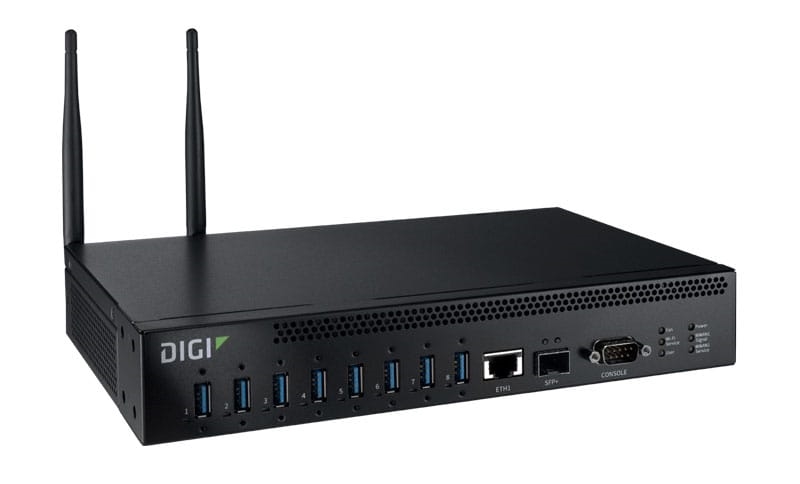

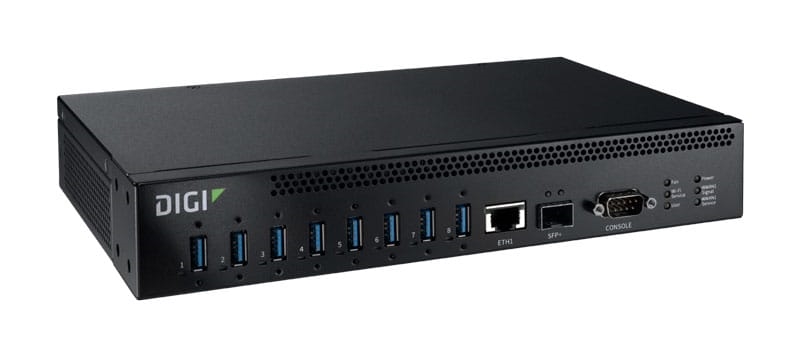

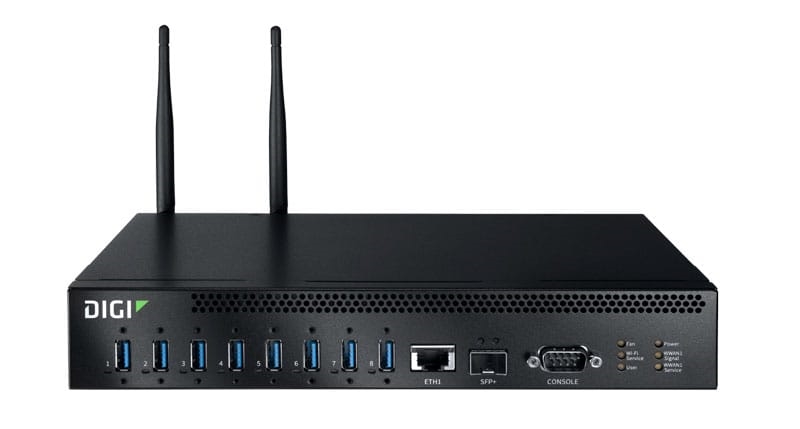

Digi AnywhereUSB 8 Plus with Wi-Fi, 8 port USB over IP Remote USB 3.1 Hub w/(8) type A USB connectors, 100-240VAC Power, 10/100/1000/10G Ethernet, Wi-Fi, support for optional SFP+ module & optional cellular CORE Module
ESP Price: $2,020.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: AW08-W300

Description Technical Specs Drivers & Downloads

Connect USB peripheral devices anywhere on a Local Area Network (LAN) via Ethernet or Wi-Fi without a locally-attached host computer

Digi AnywhereUSB® Plus brings secure, flexible and scalable USB 3.1 multiport connectivity for USB devices connected from remote or virtualized hosts. These USB hubs provide secure, robust connectivity between peripheral devices and a PC without the physical proximity constraints typically associated with USB devices. Protect the host PC, and your network, by moving the PC into a more secure and environmentally protected location while allowing AnywhereUSB Plus to extend connectivity to peripheral devices.
Features

Digi AnywhereUSB® 8 Plus with Wi-Fi

  • Cellular:
    • Module support: (1) Digi CORE® plug-in LTE modem compliant socket
  • Wi-Fi:
    • Connectivity: 2 x 2 MIMO 2.4/5 GHz: 802.11 b/g/n 2.4 GHz or 802.11 n/a/ac 5 GHz
    • Antennas: RPSMA 2 x 2 MIMO, 2.4 and 5 GHz, 3 dBi gain
    • Security: open, enhanced open, WPA, WPA2, WPA3; personal, enterprise
    • Modes: Wi-Fi client, Wi-Fi access point
  • Software and management:
    • Remote management: Digi Remote Manager® (cloud based)
    • Local management: Web UI (HTTP/HTTPS); CLI (Console, SSH)
    • Operating systems: Windows® 7, Windows 8.1, Windows 10; Windows Server® 2012 R2, Windows Server 2016, Windows Server 2019
    • Protocols: Supports multi-host connectivity for each USB port or group independently
    • Memory: 2 GB RAM, 4 GB flash (eMMC)
  • Network:
    • Ethernet: (1) RJ-45; 10 M / 100 M / 1 G / 10 G
    • SFP+: (1) SFP+ socket
  • Connectors:
    • Console: (1) DB09M; RS-232 DTE
    • USB: (8) USB 3.1 Gen 1 Type A
    • USB port power: 1 A per port (simultaneous)
  • Physical:
    • Dimensions (L x W x H): 260 mm x 160 mm x 44.45 mm (10 in x 6 in x 1.75 in)
    • Weight: 1.58 kg (3.48 lb)
    • Status LEDs: Ethernet, SFP+, 8x USB, power, fan, user, 2x WWAN (if CORE module is inserted), Wi-Fi
  • Mounting accessory:
    • Rack mount extension kit for use in 19” 1U rack (included)
  • Power requirements:
    • Power input: 12 VDC, 12 A max
    • Power consumption: 98.5 watts max
    • Power connector: Phoenix connector
  • Environmental:
    • Operating temperature: 0° C to 55° C (-32° F to 131° F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Safety: UL 62368/60950, EN 62368, IEC 62368, CSA 22.2 62368-1
    • Emissions / Immunity: CE; FCC Part 15 Class B, AS/NZS CISPR 22, EN 55024, EN 55032
  • Product warranty: 5-year
  • Accessories: Power supply, Wi-Fi antennas and rack mount extension kit included
What's in the box
  • Digi AnywhereUSB 8 Plus with Wi-Fi — 8-port USB over IP remote USB 3.1 hub with 10 M/100 M/1 G/10 G Ethernet, 12 VDC, Wi-Fi, SFP+ module support and optional cellular Digi CORE module
    • Power supply
    • Rack mount extension kit
    • Two RPSMA Wi-Fi antennas
  • 1 Year LifeCycle Assurance with 24x7 Expert Support and Digi Remote Manager Premier included
