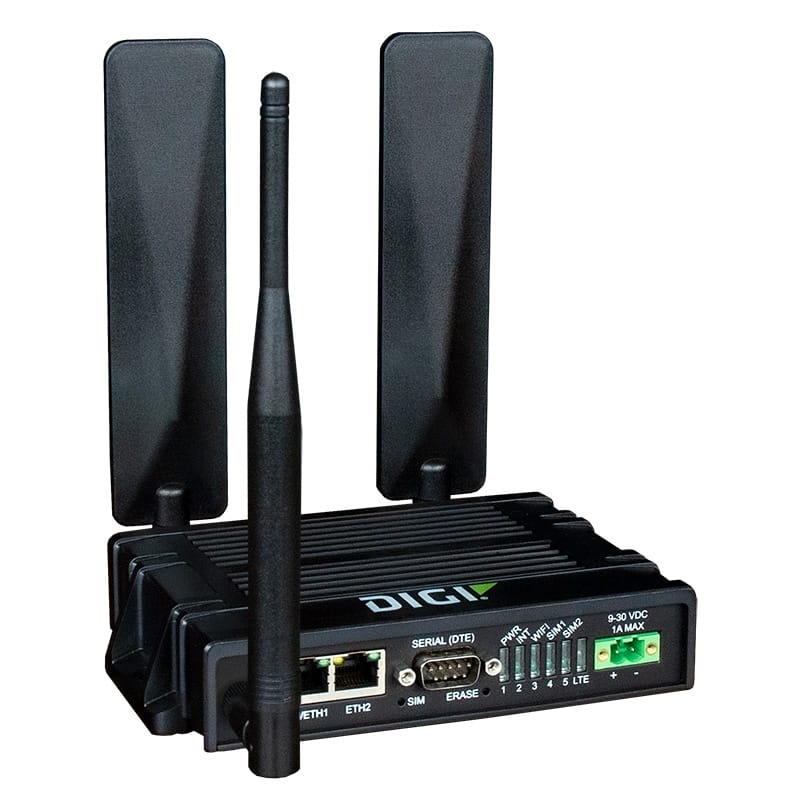

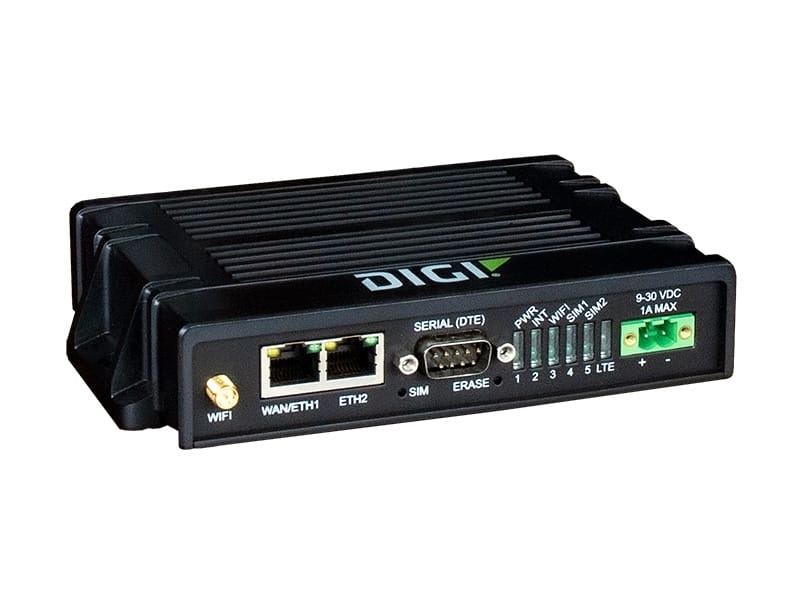

Digi IX20 is a full-featured cellular router that can scale from basic connectivity applications to industrial-class routing and security solutions. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.
The high-performance architecture of the Digi IX20 router provides primary and backup WWAN connectivity over software selectable multi-carrier LTE. Digi IX20 supports software features for advanced security (stateful firewall, MAC filtering and VPN), redundancy (
Digi SureLink®) and management (SNMP, event logging, analyzer trace and QOS), enabling it to be used in PCI or NERC-CIP compliant applications.
Gain critical insights into your deployed devices and manage your network with
Digi Remote Manager® — the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products — and the health of your network — at scale after deployment.
The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for
Digi CORE® plug-in LTE modems that can be changed out or upgraded without replacing the entire router.
Digi CORE plug-in LTE modem with dual SIM support
Digi CORE plug-in modems offer dual DIM cellular connectivity and a locking mechanism for added protection. As new LTE technologies become available Digi will launch additional versions of Digi CORE plug-in modems, which may be available for use in Digi IX20, Digi EX15, Digi 6350-SR, Digi 6330-MX, Digi 6310-DX, Digi Connect IT 4, Digi AnywhereUSB Plus and future products. The modular nature of Digi CORE plug-in modems helps mitigate technological obsolescence by allowing customers to upgrade to newer LTE standards without replacing their Digi router.
SPECIFICATIONS
|
Digi IX20
|
CELLULAR
|
CERTIFICATIONS
|
Visit
https://www.digi.com/resources/certifications for latest certifications
|
LTE (G4) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMG4
|
LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
|
CONNECTORS
|
(2) 50 Ω SMA (center pin: female)
|
SIM SLOTS
|
(2) Mini-SIM (2FF)
|
SIM SECURITY
|
Secured in cellular module
|
WI-FI
|
MODULE
|
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
|
AUTHENTICATION
|
TACACS+, Enterprise RADIUS
|
MODES
|
Client mode and access point mode simultaneously
|
CLIENTS
|
Maximum 10 clients (access point mode: regardless of combination of clients and access points)
|
ACCESS POINTS
|
Maximum 2 access points (access point mode: regardless of combination of clients and access points)
|
SECURITY
|
WPA/WPA-2 personal, WPA/WPA-2 enterprise
|
CONNECTORS
|
(1) 50 Ω SMA (center pin: male)
|
SOFTWARE AND MANAGEMENT
|
REMOTE MANAGEMENT
|
Digi Remote Manager; SNMP v2/v3 (user installed/managed)
|
LOCAL MANAGEMENT
|
WebUI (HTTP/HTTPS); CLI (Telnet, SSH)
|
MANAGEMENT / TROUBLESHOOTING TOOLS
|
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, dynamic DNS, ping, traceroute
|
MEMORY
|
256 MB RAM, 256 MB flash
|
ETHERNET
|
PORTS
|
(2) RJ-45; 10/100 Mbps (auto-sensing)
|
SERIAL
|
PORTS
|
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
|
PHYSICAL
|
DIMENSIONS (L x W x H)
|
107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
|
WEIGHT
|
0.65 kg (1.4 lb)
|
STATUS LEDs
|
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE
|
ENCLOSURE
|
Glass-filled polyphenylene sulphide (PPS) / IP30
|
POWER REQUIREMENTS
|
POWER INPUT
|
9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included
|
POWER CONSUMPTION
|
2.5 W typical (idle); 6 W typical (peak Tx/Rx)
|
ENVIRONMENTAL
|
OPERATING TEMPERATURE
|
Models with Wi-Fi: -20° C to 70° C (-4° F to 158° F); device performance may be impacted above 50° C (122° F)
Models without Wi-Fi: -40° C to 70° C (-40° F to 158° F); device performance may be impacted above 50° C (122° F)
|
RELATIVE HUMIDITY
|
5% to 95% (non-condensing)
|
APPROVALS
|
CELLULAR
|
Visit
https://www.digi.com/resources/certifications for latest cellular certifications
|
SAFETY
|
IEC62368-1, CB, EN62311
|
ENVIRONMENTAL
|
ROHS3
|
EMISSIONS / IMMUNITY
|
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
|
WARRANTY
|
PRODUCT WARRANTY
|
3-year
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
- Compact and economical cellular routing platform with industrial feature set
- Redundant connectivity with dual SIMs and Digi SureLink®
- FirstNet Ready™ models for first responder communications
- Global bands and single part number to simplify global distribution, deployment and management
- Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support
- Digi Remote Manager® platform for easy setup, mass configuration and management
- Dual Ethernet ports and single serial (RS-232) port
|
|
|
|
|
|
|
